S : Standart
O : Optional
-

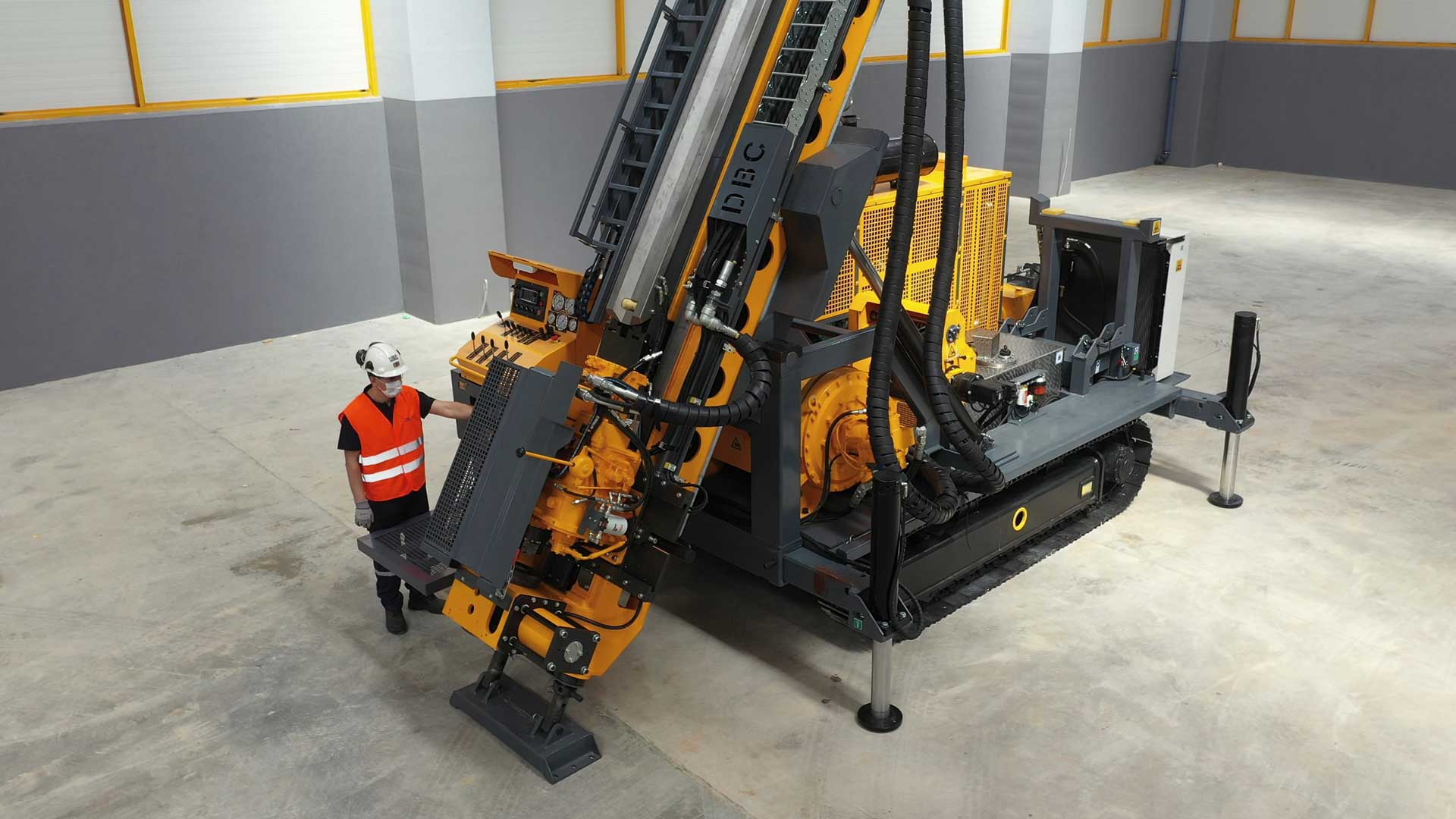

General
Depth Capacity N wireline 3000 m Core Drill Rig Surface -
Engine
Type Diesel Model VOLVO PENTA TAD1340VE Power 256 kW 2100 rpm -
Standart Features
Flush Pump Capacity AMC 140 or 250 lt/min Feed Stroke 6 m pull mast with 3.5 m Hydraulic Feed Cylinder 250 kN pull BRADEN Hydraulic main hoist 240 kN single line "P" Capacity drillhead with 4 speed gear box, hydraulic chuck and gear transmission 1 set of N-WL jaws and bushings incl. Hydraulic Leveling Jack 4 (w/extendable legs) Single Large Diameter Crown Block Sheave S Hydraulic Mast Dump S Rod Holder, Gas Spring "P" size rod holder, gas spring (incl. N-WL size jaws) Skid Mounted S Hydraulic Circuit for Water Pump S Hydraulic Wireline Hoist S Fuel Tank 300 l Lightening Kit S Crawler Carrier O Rotation rpm and mud flow meter gauges S Drilling Angle 45° to 90° Color Code RAL 1028 CE Certificed S Patented Rod Elevator S -
Drilling Capacities
Suitable Drilling Diameter 46-114 mm Core Drilling Exploration WL Drilling A,B,N,H and P sizes NW 1930 m B-WL 3400 m N-WL 3000 m H-WL 1930 m P-WL 1300 m The above figures only serve as a guideline and refer to vertical, downward drilling in homogeneous rock -
Drill Unit
Spindle Inner Diameter 119 m 1st Speed 200 rpm - 6250 Nm 2nd Speed 420 rpm - 3100 Nm 3rd Speed 750 rpm - 1750 Nm 4th Speed 1300 rpm - 1000Nm Max Speed 1300 rpm Max Torque 6250 Nm Hydraulic Open, Spring Closed Automatic S Chuck Equipped Sets of jaws Chuck Axial Holding Force 250 kN Hydraulic off-hole shift and of the rotation S -
Drill Mast (Equipped with Hydraulic Feed Cylinder)
Feed Lenght 3500 mm Max Feed Force 120 kN Max Retract Force 250 kN Drilling Angle 45° to 90° Rod Pull Length (with main hoist) 6.10 m The Mast is Equipped with Patented Rod Elevator and Lower Mast Position Fine Adjustment System S The Positioning of the Mast is Made with Hydraulic Cylinder S -
Rod Holder (Automatic Type)
Gas Spring Powered S Max Rod Size 139 mm Max. Inside Diameter without Covers 230 mm Max. Inside Diameter without Jaws 150 mm Axial Holding Force 250 kN Equipped with N-WL set jaws and guides Hydraulic open, Gas Spring Closed S -

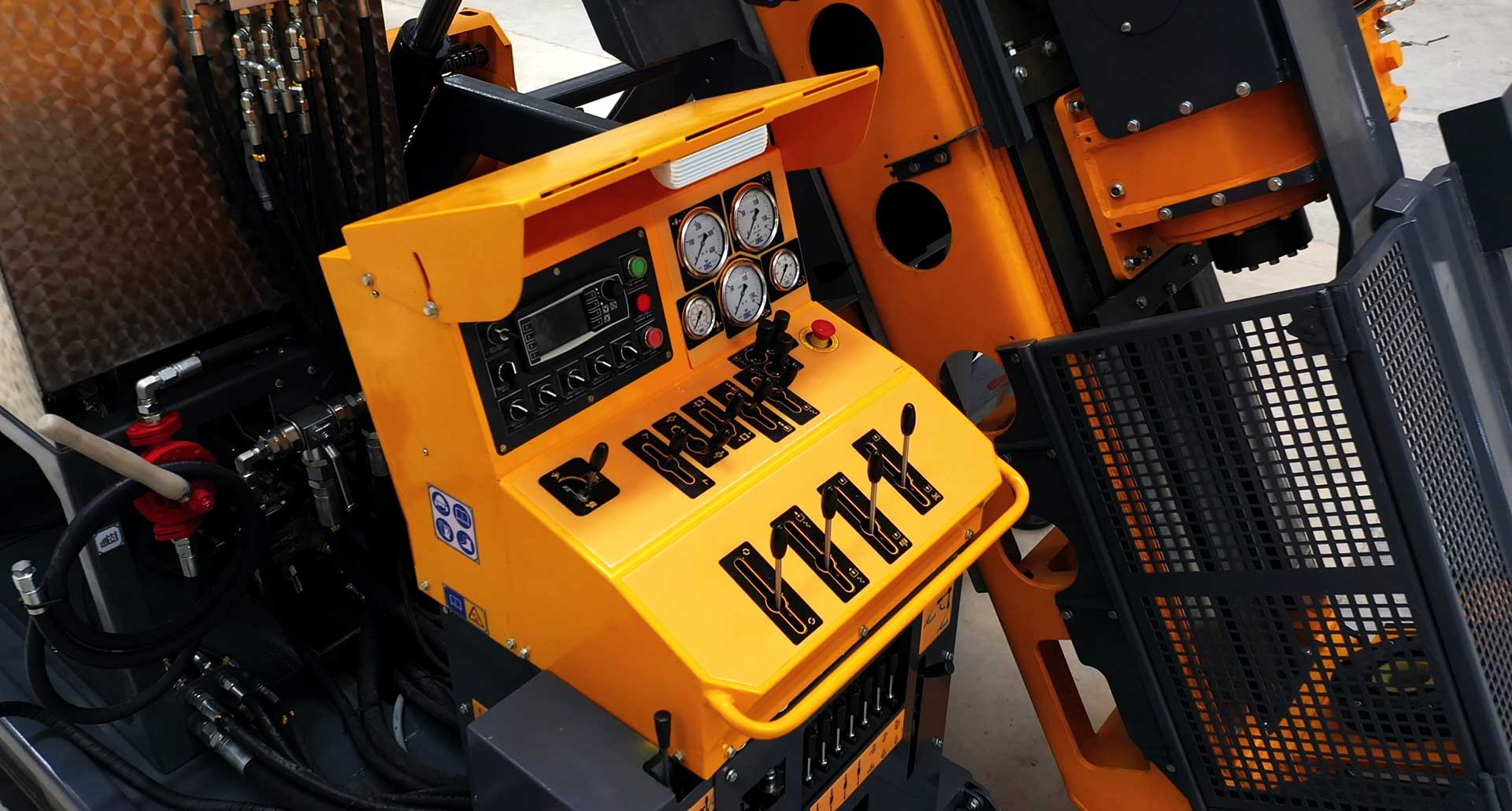

Control Panel
Includes RPM Display of the Rotation Unit S Flow Rate of the Mud Pump S *Mounted on a Seperate Frame. It is Equipped with all Necessary Valves, Gauges and Switches to Control the Drilling Operations S -
Power Pack
Main Pump Flow - Max Working Pressure 300 l/min - 310 bar Service Pump Flow - Max Working Pressure 150 l/min - 250 bar Auxilary Pump Flow - Max Working Pressure 60 l/min - 220 bar Stainless Steel Oil Tank with Return Filters S Stainless Steel Fuel Tank Primary Fuel Filter with Water Seperator and Electric Transfer Pump S Hand Pump for Oil Filling S -
Wireline Hoist
It is Mounted on the Rig Chassis and Equipped with all Necessary Pulleys etc. S Capacity 3000 m with 5 mm wire rope Line Pull (Bare Drum-Full Drum) 19 kN - 4.2 kN Line Speed (Bare Drum-Full Drum) 80 m/min - 320 m/min -
Main Hoist
Single Line Capacity (Bare drum) 240 kN Line Speed (Bare drum) 30-70 m/min Cable Size 24 mm -
Water Mud Pump
AMC Triplex Pump Mounted on the Rig Chassis and Operated with Hydraulic Power from the Rig S Capacity 0-140 l/min (adjustable) Max Pressure 70 bar / 90 bar -
DDP Digital Drilling Package
Digital Leveling Gauge O Boom Angle Display O Penetration Rate Display O Fuel Level in Tank O -
Remote Control
Radio Remote Control for Crawler with this Option Machine can be Driven without Anybody on the Machine. O The driver can Stand in a Safe Place or Walk Aside from the Machine -
Syncronisation between Chuck and Rod Holder
With this option, the machine will be equipped with a hydraulic system that synchronizes the chuck and rod holder for automatic rod handling. Also, the control panel will be separate and movable around the rig and can be put into a tent, etc. O -
Crawler Undercarriage
Driven by Power Pack ;
Track width
Track Length
Crawler Carrier Width
Travel SpeedO
400mm
3308 mm
-
1,01 km/h -
Other
Air type Oil Cooler S Larger Capacity Water Pump O Cold (Arctic) Climate option (Special seal, fuel and air filters, etc.) O Mud Mixers O Custom Color O
