S : Standart
O : Optional
-

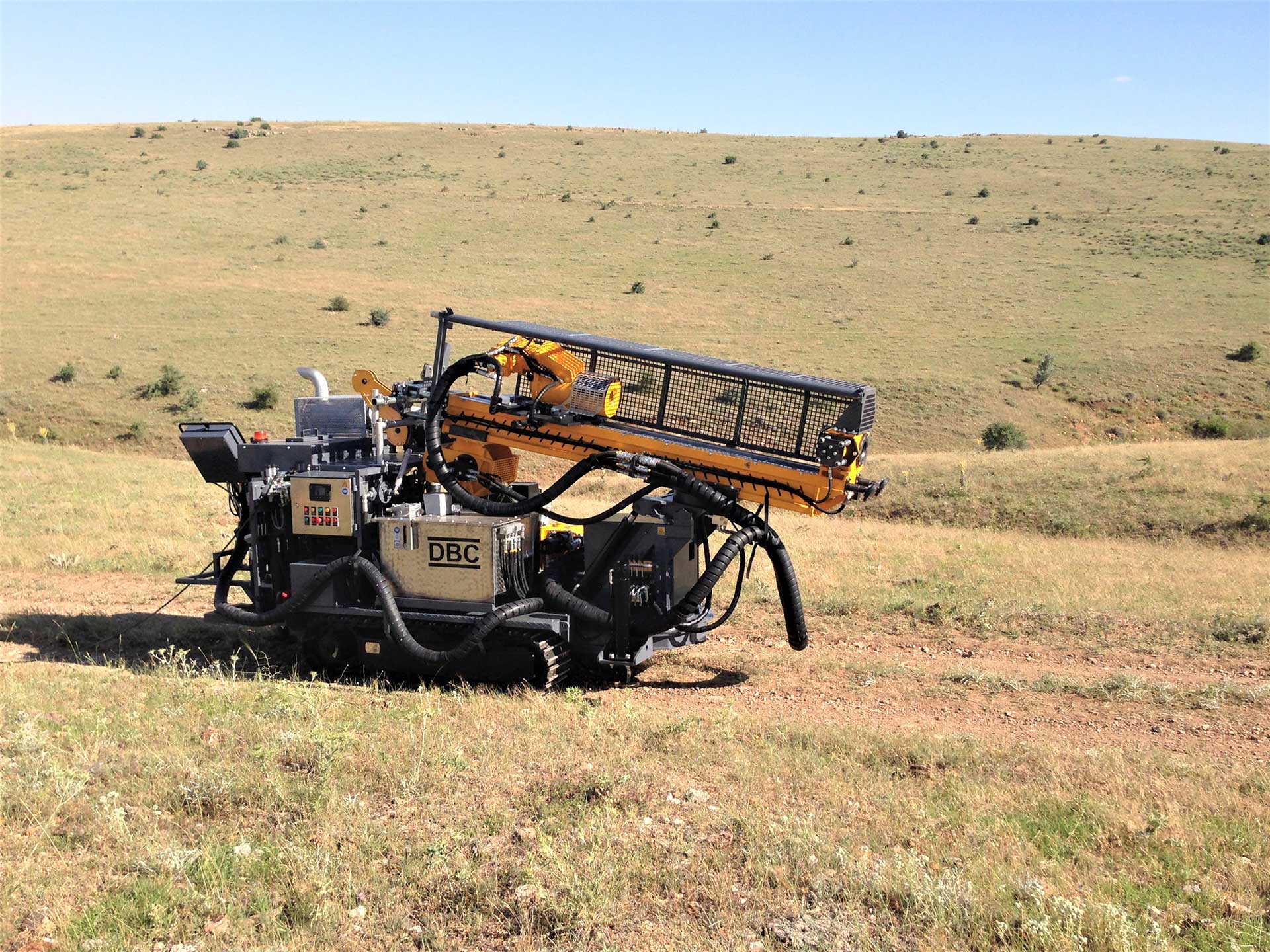

General
Depth Capacity N wireline 1500 m Core Drill Rig Surface / Underground -
Engine
Type Electric Model Siemens or ABB Power 110 kW 1450 rpm -
Standart Features
Flush Pump Capacity AMC 140 lt/min Feed Stroke 1.8 m Hydraulic Feed Cylinder 133 kN Hydraulic Leveling Jack O Hydraulic Mast Dump O Rod Holder, Gas Spring "P" size rod holder, gas spring (incl. N-WL size jaws) Skid Mounted S Hydraulic Circuit for Water Pump S Hydraulic Wireline Hoist S Fuel Tank O Lightening Kit O Crawler Carrier O Rotation rpm and mud flow meter gauges S Drilling Angle 360° Color Code RAL 1028 CE Certificed S Skid mounted fully hydraulic multipurpose drill rig; complete with synchronized rod handling system optionally can be equipped with turntable and hydraulic worm gear to allow drilling in all directions underground. S -
Drilling Capacities
Suitable Drilling Diameter 46-114 mm Core Drilling Exploration WL Drilling A,B,N and H NW 1500 m B-WL 2000 m N-WL 1500 m H-WL 1000 m The above figures only serve as a guideline and refer to vertical, downward drilling in homogeneous rock -
Drill Unit
Spindle Inner Diameter 101 Max Speed 1200 rpm Max Torque 2300 Nm Chuck Equipped N-WL set of jaws Chuck Axial Holding Force 150 kN Hydraulic off-hole shift and of the rotation O Hydraulic Automatic Chuck S -
Drill Mast (Equipped with Hydraulic Feed Cylinder)
Feed Lenght 1800 mm Max Feed Force 133 kN Max Retract Force 133 kN Drilling Angle 360° Rod Pull Length (with main hoist) 1.8 m The Positioning of the Mast is Made with Hydraulic Cylinder S -
Rod Holder (Automatic Type)
Gas Spring Powered S Max Rod Size 117,5 mm Max. Inside Diameter without Covers 210 mm Max. Inside Diameter without Jaws 124 mm Axial Holding Force 133 kN (with TC jaws) Equipped with N-WL set jaws and guides Hydraulic open, Gas Spring Closed S -
Control Panel
Includes RPM Display of the Rotation Unit S Flow Rate of the Mud Pump S *Mounted on a Seperate Frame. It is Equipped with all Necessary Valves, Gauges and Switches to Control the Drilling Operations S -
Power Pack
Main Pump Flow - Max Working Pressure 200 l/min - 350 bar (set to 315 bar) Service Pump Flow - Max Working Pressure 65 l/min - 350 bar (set to 240 bar) Auxilary Pump Flow - Max Working Pressure 65 l/min - 240 bar Stainless Steel Oil Tank with Return Filters S Stainless Steel Fuel Tank Primary Fuel Filter with Water Seperator and Electric Transfer Pump O Hand Pump for Oil Filling S Water Type Oil Cooler S -
Wireline Hoist
It is Mounted on the Rig Chassis and Equipped with all Necessary Pulleys etc. S Capacity 2000 m with 4,76 mm wire rope Line Pull (Bare Drum-Full Drum) 9.7 kN - 3.6 kN Line Speed (Bare Drum-Full Drum) 120 m/min - 460 m/min -
Main Hoist
Single Line Capacity (Bare drum) O -
Water Mud Pump
AMC Triplex Pump Mounted on the Rig Chassis and Operated with Hydraulic Power from the Rig S Capacity 0-140 l/min (adjustable) Max Pressure 70 bar -
Remote Control
Radio Remote Control for Crawler with this Option Machine can be Driven without Anybody on the Machine. O The driver can Stand in a Safe Place or Walk Aside from the Machine -
Syncronisation between Chuck and Rod Holder
With this option, the machine will be equipped with a hydraulic system that synchronizes the chuck and rod holder for automatic rod handling. Also, the control panel will be separate and movable around the rig and can be put into a tent, etc. S -
Crawler Undercarriage
Driven by Power Pack ;
Track width
Track Length
Crawler Carrier Width
Travel SpeedO
300 mm
2773 mm
1500 mm
1,01 km/h
-
Other
Air type Oil Cooler O Hydraulic Worm Gear to allow 360 degrees Drilling of the Drill Mast O Diesel Power Pack for Crawler this Option Machine Can be Driven independently It is Supplied with a Perkins or Hatz air Cooled Engine Cold (Arctic) Climate option (Special seal, fuel and air filters, etc.) O Custom Color O
